    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable

    Ask Lasest Price
    Price : USD10,000-80,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    Supply Ability : 5pcs/month
    • Product Details
    • Company Profile

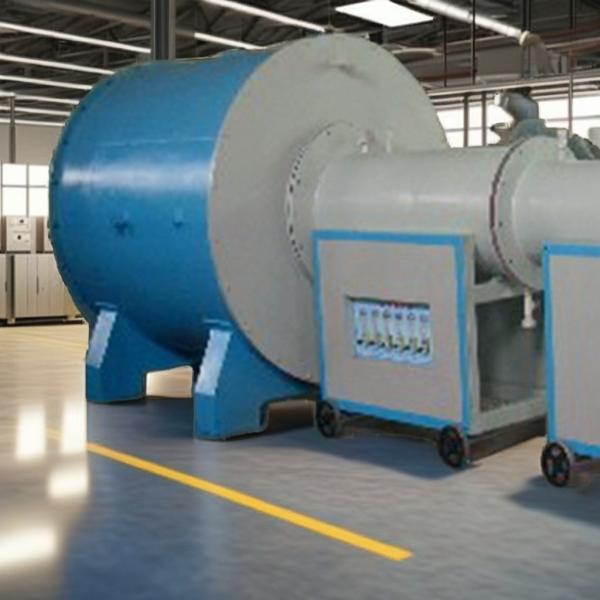

    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable

    High Temperature Carbon Tube Furnace Customizable Professional Resistance Furnace China Factory Core Components Including Pump
    Product Description

    HighTemperature Carbon Tube Furnace

    Mainly used for purification of graphite powder and other high temperature treatment. Its operating temperature can reach 2800℃, and can work continuously for a long time. Good production efficiency, energy saving. With on-line temperature measurement and temperature control system, the temperature in the furnace can be monitored in real time and adjusted automatically.

    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    Model
    JT-TGL-100
    JT-TGL-150
    JT-TGL-200
    Operating Temperature
    ≤2400℃
    Boat Size(mm)
    φ100*320
    φ150*400
    φ200*420
    Production Output(kg/d)
    100
    150
    200
    Protective Gas
    argon
    Temperature Control Mode
    PID automatic control
    Rated Power(kw)
    80
    150
    180
    Voltage(v)
    three phase 380v
    Temperature Measurement Mode
    far-infrared measurement
    Working Mode
    push-boat type intermittent loading materials
    Cooling Mode
    circulating water cooling
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable

    (1)The temperature up to 2800 degree, good temperature uniformity, long constant temperature area, low failure rate of equipment operation.
    (2) Long service life of furnace tube, continuous production 20-30 days with the furnace.
    (3) With infrared temperature measurement and temperature control system, real-time display and PID automatic control, the product quality is stable.
    (4) Adopt three-phase power supply mode,it is stable.
    (5) Max. temperature 3000℃, it can work at 2600-2800℃ for a long time
    (6) Adopt automatic feeding device.
    (7) The carbon felt as insulation material, it is convenient to change carbon tube, and it is clean.
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable

    (8) Push-boat production mode, continuous production.
    (9) The material is in the boat, so it will not get pollution again.
    (10) The product quantity of each boat is about 1.5 kg. Sample can be tested in time, and the process can be modified according to the test results.
    (11) Short heating time, up to 200℃/ hour.
    (12) Good sealing in furnace body, small loss of protective gas. All flanges and covers are sealed with sealing strips.
    (13) The tank and flange of furnace body are made of stainless steel, without rust and with long service life.
    (14) Equipped with a vacuum pump for the replacement of gas in the furnace, short ventilation time, less gas consumption.
    Company Profile
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    Qualification and Patents
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    Production process
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    Customer Photos
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    Logistics System
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    High Temperature Resistance Continuous Furnace , Carbon Tube Furnace Customizable
    FAQ

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
