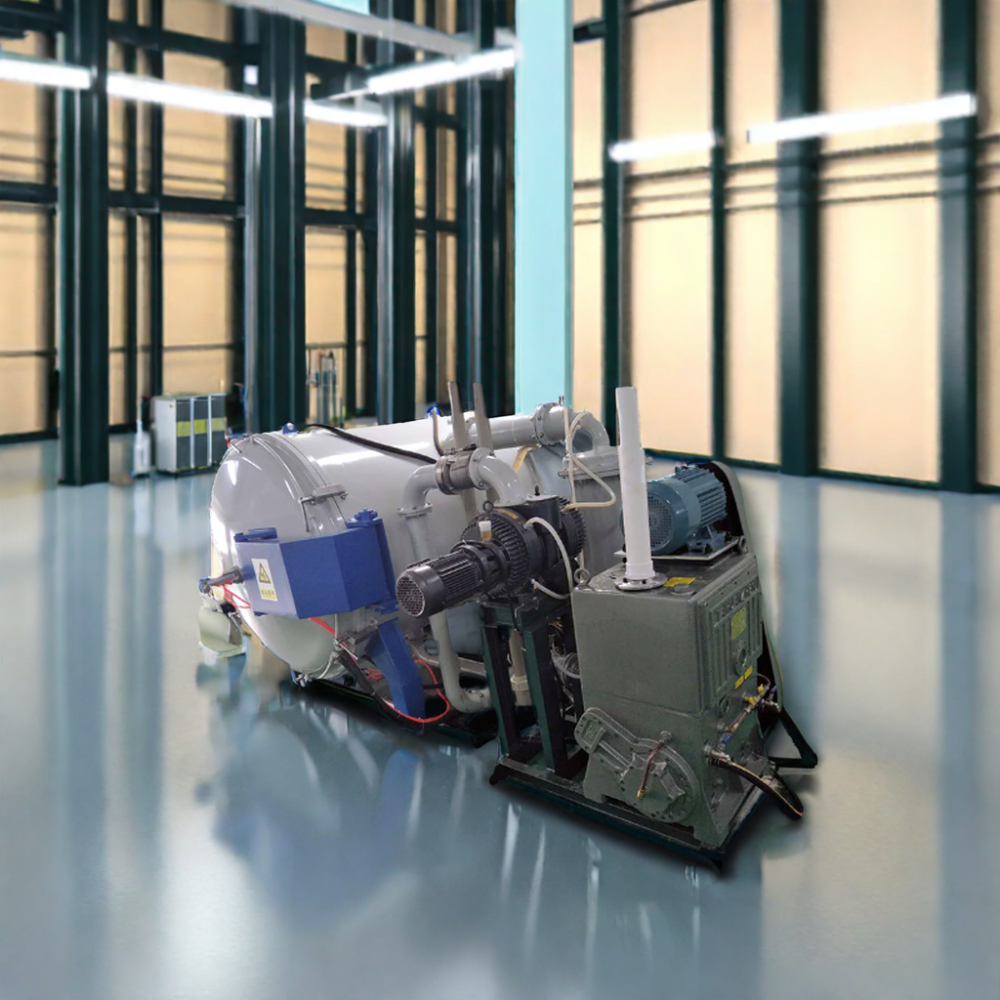

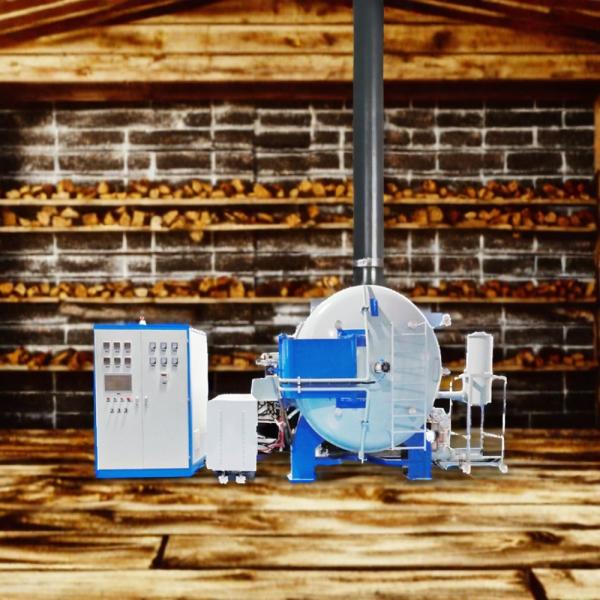

380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

Hunan Jingtan Automation Equipment Co., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening from wholesalers

    Buy cheap 380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening from wholesalers
    • Buy cheap 380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening from wholesalers

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Ask Lasest Price
    Price : USD10,000-80,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    Supply Ability : 10pcs/month
    • Product Details
    • Company Profile

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Specification

    Vacuum Carbonization Furnace

    Our company philosoph:

    We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

    The filament bundle is similar to the horizontal preoxidation furnace body structure, but because of the short residence time, several slit heating plate long furnace with different temperatures are used, and the filament bundle is not in contact with the heating surface;
    Non-wovens or felt preoxidized wires can be selected from the carbonization furnace, but if the carbonization temperature is not high, it can also be carried out in the conveyor belt furnace. Each carbonization furnace is equipped with inert gas inlet and outlet.
    Model
    JT-THL-
    45-D
    JT-THL-
    128-D
    JT-THL-
    375-D
    JT-THL-
    720-D
    JT-THL-
    1568-D
    JT-THL-2560-D
    JT-THL-
    5000-D
    Constant Temperature Zone(mm)
    300*300*500
    400*400*800
    500*500*1500
    600*600*
    2000
    700*700*
    3000
    800*800*
    4000
    1000*1000*
    5000
    High Temperature Volume
    45L
    128L
    375L
    720L
    1568L
    2560L
    5000L
    Limit Temperature
    1200℃-1600℃
    Working Atmosphere in the Furnace
    Vacuum, hydrogen, nitrogen, inert gas
    Temperature Uniformity
    ≤±10℃
    Temperature Measurement
    Far-infrared optical temperature measurement
    Temperature Measurement Range
    800~2400℃ or 0~2400℃
    Temperature Measurement Accuracy
    0.2~0.75%
    Temperature Control Accuracy
    ±1℃
    Temperature Control
    Program control and manual control
    Limit Heating Rate
    200℃/ Min (empty furnace, depending on the volume of high temperature zone and furnace structure)
    Cooing Water Pressure
    0.3MPa
    Heating Mode
    Resistance
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    (1) Graphite heating plate to use high purity, high density and high strength graphite plate, preferably isotropic graphite plate.Because its bending strength and compression strength are 2.8 times and 3.5 times of ordinary graphite, respectively.
    (2) The temperature of section ⅰ, ⅱ and ⅲ of the temperature zone can be independently regulated to meet the different requirements of different filament bundles on process conditions.
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    (3)The connection technology between the power supply and the electrode is very important. The connection is firm, the contact resistance is small, it is better to use specially processed graphite bolts. The cooling of the joint is a key technology, but also often prone to accidents, processing and welding technology must be in place.Water pressure switch and alarm should be provided for shell water cooling.
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    (4)The outlet end should be set up with a cooling device, so that the fiber is cooled below 500℃ before entering the space, to prevent oxidation. Because carbon fiber starts to slowly oxidize at 350 degrees Celsius in air. In addition to the water cooling system, the cooling device can also be cooled by nitrogen. It can be detected the composition of the gas in the furnace at any time, especially the content of trace oxygen.
    Company Profile
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for high temperature graphitization furnace:

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for high temperature vacuum hot pressure furnace:

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for high temperature continuous furifing graphitization furnace:

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for carbonization sintering furnace:

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for bottom discharge graphitization furnace:

    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Patent for carbon fiber continuous furnace

    Production process
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Customer Photos
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    Customer cooperation cases:
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    Our logistics system is all around the world.
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening

    Pre-sales and after-sales service
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    380V Vacuum Gas Carbonization Machine Carbonisation Furnace For Metal Hardening
    FAQ

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
