    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    Ask Lasest Price
    Price : USD10,000-80,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    Supply Ability : 5pcs/month
    • Product Details
    • Company Profile

    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

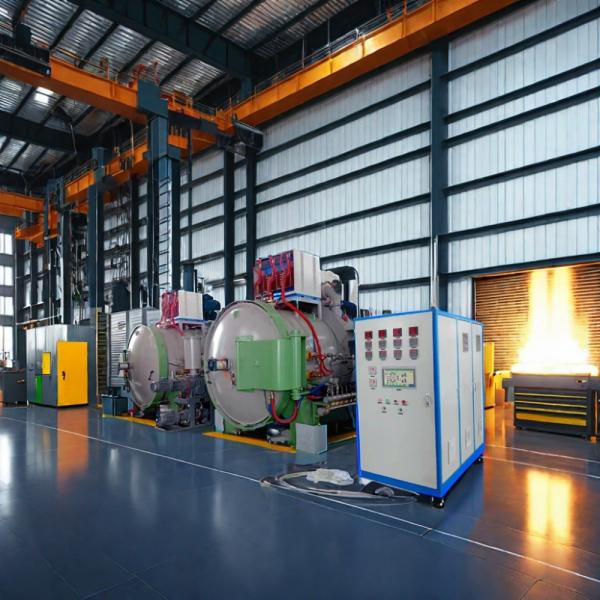

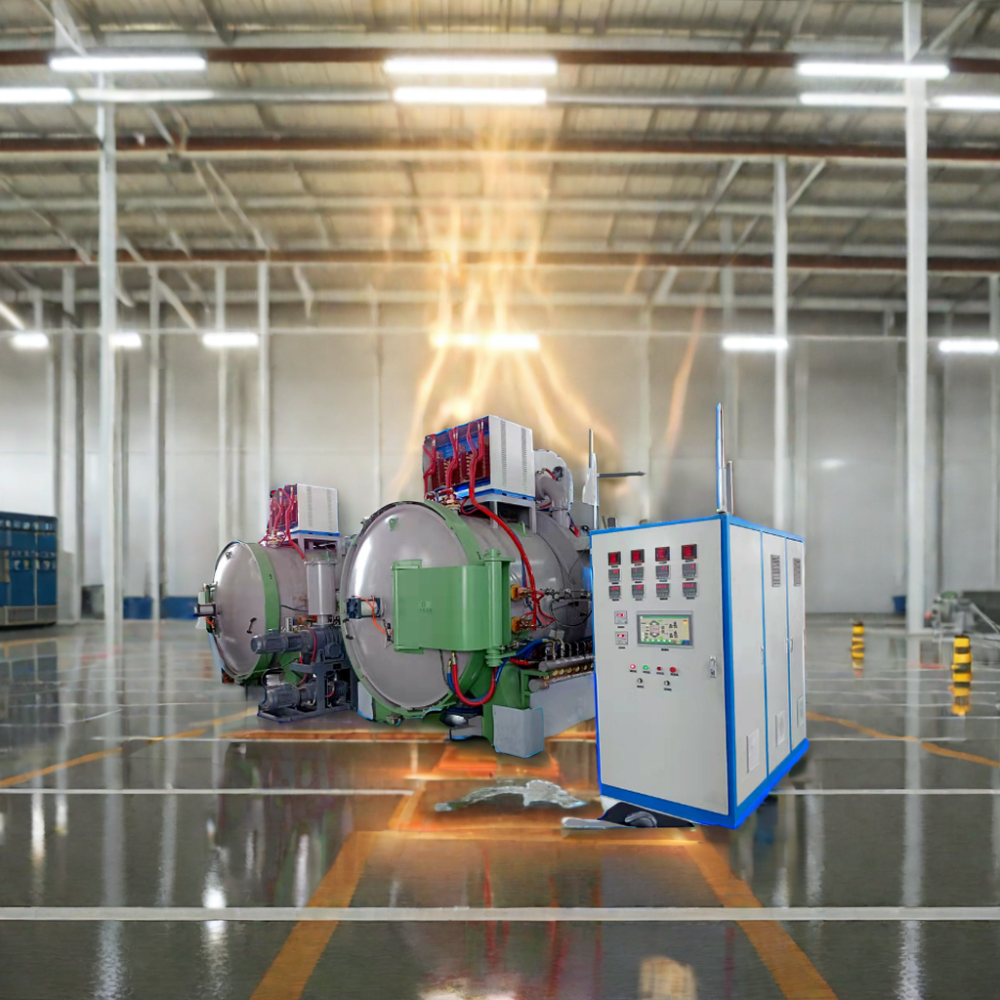

    One power supply cabinet with two sintering furnaces
    It is a kind of intermittent resistance heating furnace and the main application scope is non-pressure silicon carbide sintering, hard alloy, powder metallurgy industry production of various particle sizes of tungsten carbide powder, chromium carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder, cold pressing molding, sintering treatment. This is the latest structure, one power supply cabinet with two high temperature furnaces.

    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    Model
    JT-TSL-45
    JT-TSL-128
    JT-TSL-375
    JT-TSL-720
    JT-TSL-1568
    JT-TSL-2560
    JT-TSL-5000
    Common Temperature
    300*300*500
    400*400*
    800
    500*500*
    1500
    600*600*
    2000
    700*700*
    3000
    800*800*
    4000
    1000*1000*5000
    Loading Capacity
    45L
    128L
    375L
    720L
    1568L
    2560L
    5000L
    Limit
    Temperature
    ≤2450℃
    Operating temperature
    ≤2300℃
    Limit vaccum
    1Pa(In a cold, empty, clean furnace chamber)
    Leakage rate
    After stopping the pump for 15 minutes, the cold state for 12 hours is not more than 10Pa/ hour
    Temperature control accuracy
    ±1℃
    Voltage
    380V,50Hz,three Phrase
    Heating material
    graphite tubes and graphite rods
    Gas supply
    Argon gas and nitrogen gas can be controlled separately on the valve disc
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    Characteristic 1:

    Intelligent digital display instrument programming PID intelligent digital display temperature controller, new digital display,intelligent control technology, can reduce visual reading and human operation error, greatly improve work efficiency, double row
    digital display, key setting,overtemperature alarm.
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    Characteristic 2:

    Microcomputer automatic control, programmable multi-section rising, protecting, cooling curve, automatic heating, heat preservation, cooling and overtemperature protection.
    Furnace adopts high temperature durable heat insulation material,which ensure that the temperature outside the furnace body under long-term work does not exceed the allowable value of the national standard.
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    Characteristic 3:

    Internal circulating water system, to ensure the speed of cooling. The furnace body temperature is close to room temperature.
    Fast heating, environmental protection and energy saving, high precision, stable performance, good heat preservation effect.
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
    45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
