    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Ask Lasest Price
    Supply Ability : 30 Piece/Pieces per Quarter
    Price : USD10,000-100,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    • Product Details
    • Company Profile

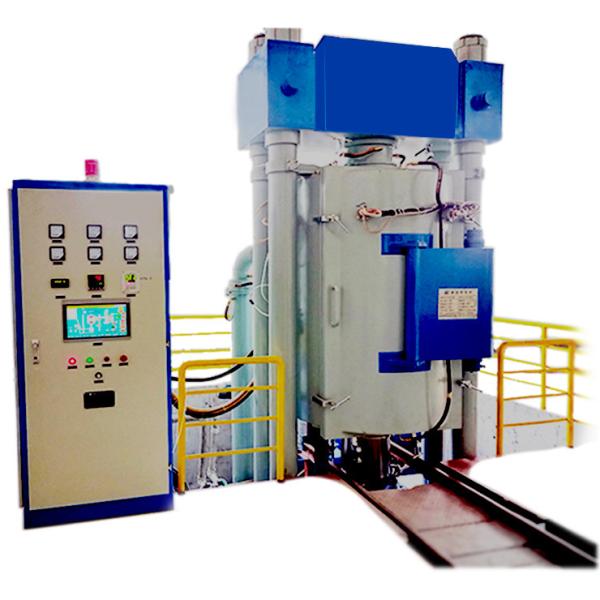

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Colleges Research Vacuum Hot Press Furnace High-Precision Silicon Nitride Ceramic Bearing And Silicon Nitride Ceramic Substrate

    Specification

    Features:

    (1) Double SUS304 furnace structure, cooling water through the middle, effectively reduce the surface temperature of the furnace body to reduce high temperature damage, reduce the impact on the environment;
    (2) frame type double column support structure, using profile welding, overall processing, to ensure the reliability of equipment;
    (3) the use of thermal insulation materials and thermal insulation structure, low thermal conductivity, good thermal insulation effect, even at a high temperature can effectively isolate heat, save energy consumption;
    (4) Wide temperature range, heating elements of various options, such as graphite, molybdenum, tungsten, tantalum, in the appropriate protective atmosphere, the temperature can reach 2800℃, can adapt to the hot pressing sintering of different materials;
    (5) Diversified vacuum system configuration, choose different levels of vacuum according to the process;
    (6) Without charging and releasing system, you can choose hot pressing sintering in vacuum environment, also can choose hot pressing sintering in inert atmosphere or reducing atmosphere;
    (7) Humanized configuration, both manual operation, can also achieve one-button intelligent operation;
    (8) This Furnace can meet multi-purposes, can be used as a simple vacuum or atmosphere sintering furnace;
    (9) diversified types, vertical upper discharge, vertical side door discharge, one-way pressure, two-way pressure and so on, arbitrary choice;
    (10) This product accepts non-standard customization.
    Usage:
    The equipment is mainly used for colleges and universities, scientific research units for metal compounds, ceramics, inorganic compounds, nanomaterials, etc., under the condition of vacuum or protective atmosphere for pressure heating and sintering processing, in order to obtain consistent products, such as the production of high-precision silicon nitride ceramic bearings and silicon nitride ceramic substrate.
    Model
    Work Area Dimension D*H mm
    Maximum Temperature℃
    Cold limit Vacuum Pa
    The pressure ratio Pa/h
    Rated Power Kw
    Pressure T
    Displacement mm
    Charge Pressure Mpa
    GJC-RYL-50
    Ф150*200
    2400
    5*10-3
    3
    50
    20-200
    0-100
    0.05
    GJC-RYL-75
    Ф200*300
    2400
    5*10-3
    5
    75
    20-200
    0-150
    0.05
    GJC-RYL-100
    Ф300*400
    2400
    5*10-3
    6
    100
    20-200
    0-250
    0.05
    GJC-RYL-200
    Ф400*500
    2400
    5*10-3
    6
    200
    20-200
    0-300
    0.05
    GJC-RYL-300
    Ф500*600
    2400
    5*10-3
    6.5
    300
    20-200
    0-350
    0.05
    GJC-RYL-400
    Ф600*700
    2400
    5*10-3
    6.5
    400
    20-200
    0-450
    0.05

    Product parameter:
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Title goes here.

    1) Double SUS304 furnace structure, cooling water through the middle, effectively reduce the surface temperature of the furnace body to reduce high temperature damage, reduce the impact on the environment;
    2) frame type double column support structure, using profile welding, overall processing, to ensure the reliability of equipment;
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Title goes here.

    3) the use of thermal insulation materials and thermal insulation structure, low thermal conductivity, good thermal insulation effect, even at a high temperature can effectively isolate heat, save energy consumption;
    4) Wide temperature range, heating elements of various options, such as graphite, molybdenum, tungsten, tantalum, in the appropriate protective atmosphere, the temperature can reach 2800℃, can adapt to the hot pressing sintering of different materials;
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Title goes here.

    5) Diversified vacuum system configuration, choose different levels of vacuum according to the process;
    6) Without charging and releasing system, you can choose hot pressing sintering in vacuum environment, also can choose hot pressing sintering in inert atmosphere or reducing atmosphere;
    7) diversified types, vertical upper discharge, vertical side door discharge, one-way pressure, two-way pressure and so on, arbitrary choice;
    Company Profile
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    Our company philosoph:
    We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
    The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for high temperature graphitization furnace:

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for high temperature vacuum hot pressure furnace:

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for high temperature continuous furifing graphitization furnace:

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for carbonization sintering furnace:

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for bottom discharge graphitization furnace:

    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Patent for carbon fiber continuous furnace

    Production process
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing

    Customer Photos
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    Customer cooperation cases:
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    Our logistics system is all around the world.
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    OEM Multi Purpose Vacuum Hot Press Furnace For Production Silicon Nitride Ceramic Bearing
    FAQ

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
