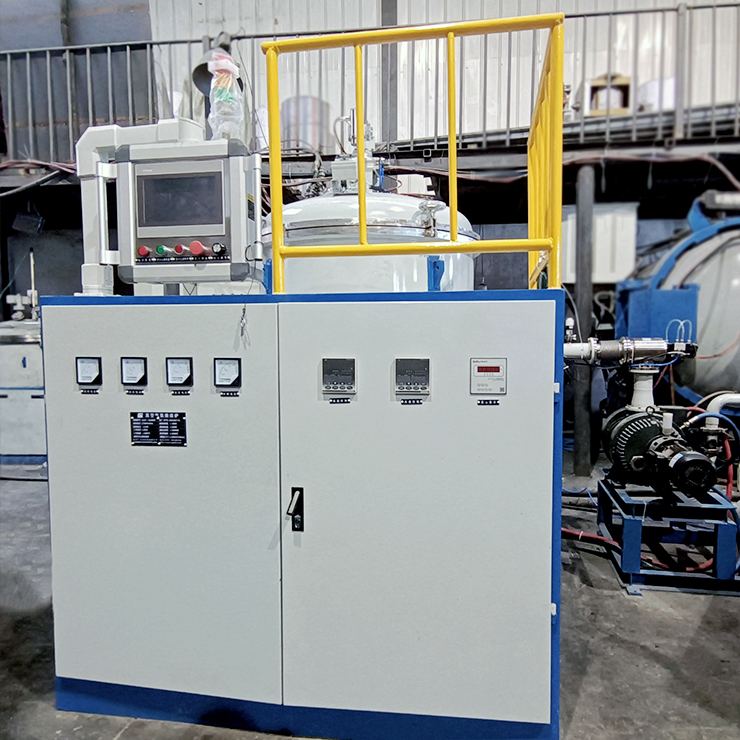

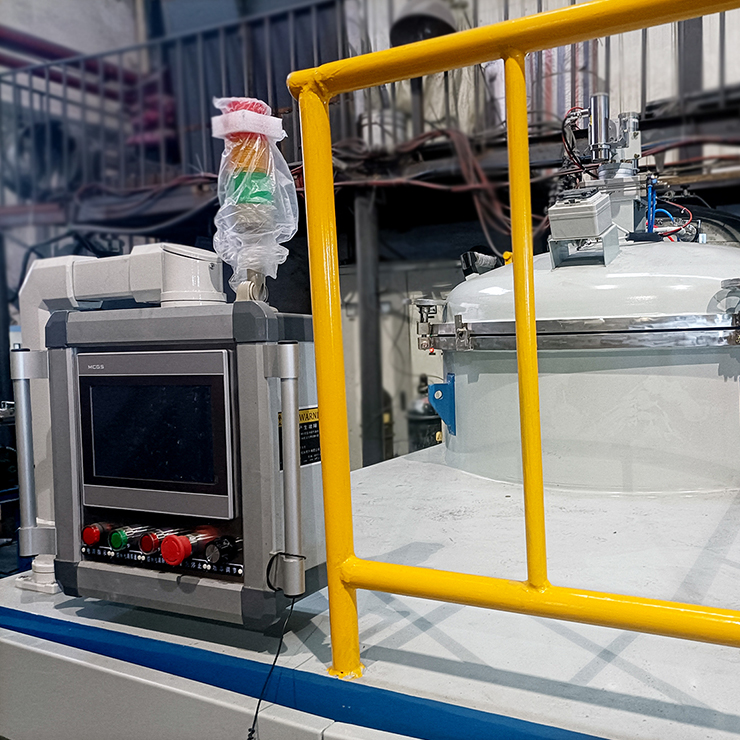

2400C High Temperature Induction Furnace Lithium Battery Materials New Atmosphere Protective Sinter Treatment Furnace Pump Motor

Product Overview

The atmosphere protective sintering furnace

Suitable for lithium battery materials, rare earth materials, magnetic materials, mineral materials, ceramic devices, refractory materials, activated carbon carbonization, metal powder and other new materials under the protection of atmosphere sintering treatment and reduction treatment, mainly tungsten powder reduction treatment, nitriding treatment and carbonization treatment.

2200℃ ultra-high temperature furnace body, compatible with fine, medium and coarse granular WC powder and composite material carbonization heating process.

Adopt pure water cooling system and digital flow monitoring system.

Performance medium frequency contactor is used for automatic conversion of furnace body

Comprehensive PLC automatic control and protection system for water, electricity and gas

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Use Temperature	1800℃~3000℃	1800℃~2900℃
High Temperature Volume	12L,45L,128L,192L,250L,375L,540L,648L	980L,1600L,2430L,3500L,10000L
Working atmosphere in furnace	Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Uniformity	≤±10℃	≤±20℃
Temperature Measurement	Low temperature thermocouple temperature measurement, high temperature far infrared optical temperature measurement range 800~2500 ℃或 Normal Temperature 2200℃
Temperature Measurement accuracy	0.2~0.75%
Temperature Control	Program control and manual control
Temperature Control accuracy	±1℃	±3℃
Limit heating rate	75℃/min(Empty Furnace)	25℃/min(Empty Furnace )

SALES AND SERVICE NETWORK

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for high temperature graphitization furnace:

Patent for high temperature vacuum hot pressure furnace:

Patent for high temperature continuous furifing graphitization furnace:

Patent for carbonization sintering furnace:

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Production Process

Successful Project

Project in Thailand

Project in India

Project in Russia

Customer Photos

Customer cooperation cases:

    Hunan Jingtan Automation Equipment Co., Ltd. was founded in 2021, the production base Zhuzhou Guangjichang Technology Co., Ltd. was founded in 2014, is a high-tech enterprise integrating research and development, production, sales and service, and has become a famous leading manufacturer of thermal equipment in China.Now it has two factories,which covers 3500m2. The main products are vacuum sintering furnace, silicon carbide sintering furnace, high temperature graphitization furnace, vapor deposition furnace, high temperature carbon tube furnace, vacuum carbonization furnace, vacuum hot press furnace, vacuum induction melting furnace, etc. The equipment produced by our company is widely used in aerospace, electronics, transportation, machinery, metallurgy, cemented carbide, refractory metal, special ceramics, carbon carbon composite materials, semiconductor materials and solar cells and other dozens of processing and manufacturing industries and fields, and has won the trust and praise of the majority of users with high-quality products and perfect service.

     We have always adhered to the science and technology enterprise, continuous innovation, pay attention to cooperation with scientific research institutions and major universities, and develop a number of high-tech thermal equipment with the industry's leading level. Our company can design and manufacture non-standard thermal equipment according to user requirements, and provide customers with corresponding process technical support, so as to relieve all worries for users.

   The company has a number of utility model patent certification, and has ISO9001:2015 quality management certificate, can provide CE, UL and other product certificates for the equipment. In order to continuously meet customer needs, to provide "directional application, focus on development, Customized per customer’s requirements" efficient characteristic services. Our company has a number of domestic first cases, such as: chlorine gas sintering furnace (can make the product purity of 99.9999%), ultra-high temperature graphitization furnace temperature up to 3200 degrees, vacuum hot press furnace weight up to 800 tons.

    "Customer first, the pursuit of quality, continuous innovation, continue to lead!" It is the service purpose of Jingtan company;" Based in Zhuzhou, radiating China, facing the world "is our company's service concept. At present, our products are mainly exported to Europe, Middle East, Southeast Asia and other countries; in the domestic market has also won the praise of the majority of users, has been highly recognized by the industry. Hunan Jingtan Automation Equipment Co., Ltd. strives to become your most trusted manufacturer of high temperature equipment.
