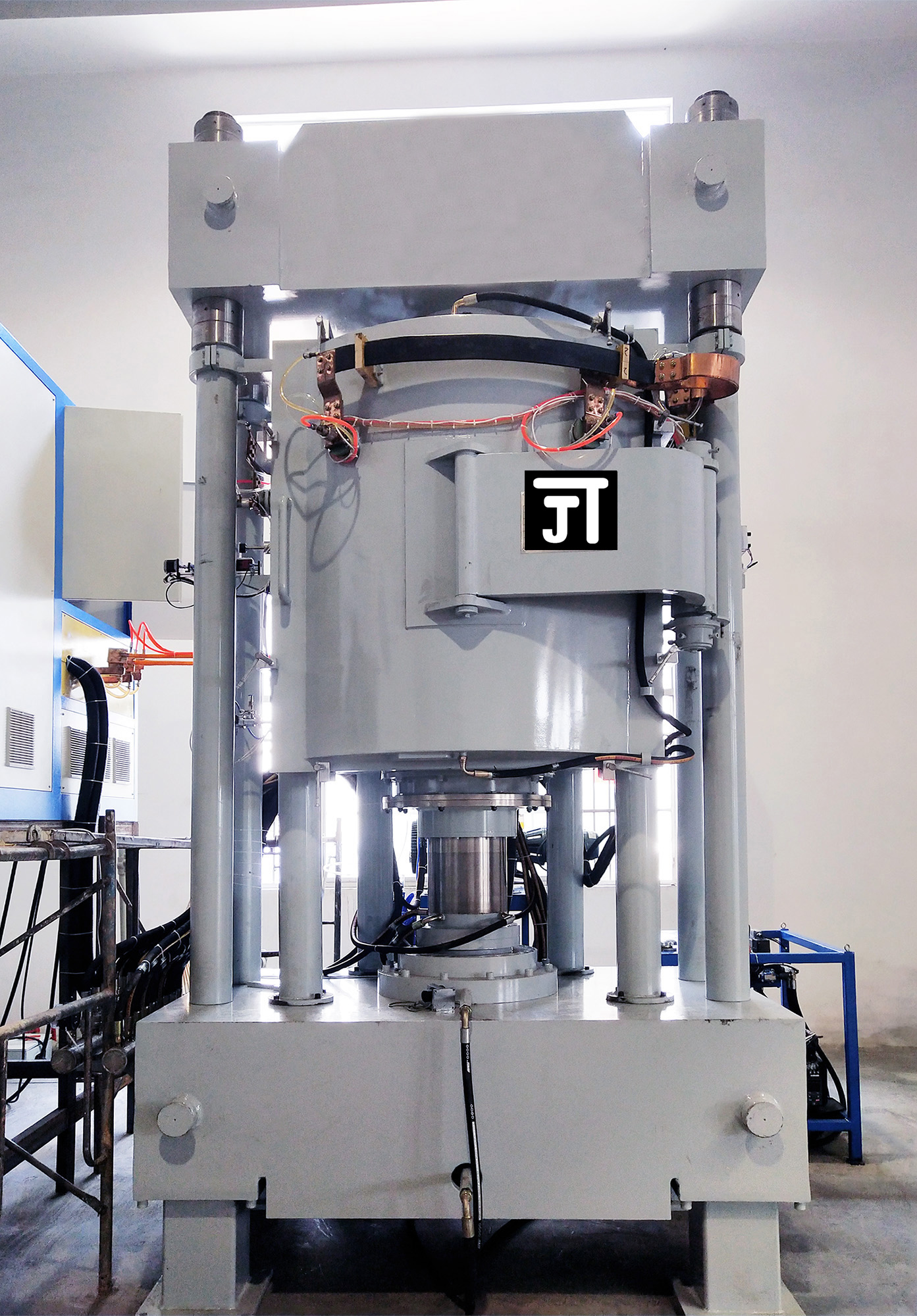

High-Precision Silicon Nitride Ceramic Bearings And Silicon Nitride Ceramic Substrate Vacuum Hot Press Furnace

Specification

Usage:

The equipment is mainly used for colleges and universities, scientific research units for metal compounds, ceramics, inorganic compounds, nanomaterials, etc., under the condition of vacuum or protective atmosphere for pressure heating and sintering processing, in order to obtain consistent products, such as the production of high-precision silicon nitride ceramic bearings and silicon nitride ceramic substrate.

Features:

(1) Double SUS304 furnace structure, cooling water through the middle, effectively reduce the surface temperature of the furnace body to reduce high temperature damage, reduce the impact on the environment;

(2) frame type double column support structure, using profile welding, overall processing, to ensure the reliability of equipment;

(3) the use of thermal insulation materials and thermal insulation structure, low thermal conductivity, good thermal insulation effect, even at a high temperature can effectively isolate heat, save energy consumption;

(4) Wide temperature range, heating elements of various options, such as graphite, molybdenum, tungsten, tantalum, in the appropriate protective atmosphere, the temperature can reach 2800℃, can adapt to the hot pressing sintering of different materials;

(5) Diversified vacuum system configuration, choose different levels of vacuum according to the process;

(6) Without charging and releasing system, you can choose hot pressing sintering in vacuum environment, also can choose hot pressing sintering in inert atmosphere or reducing atmosphere;

(7) Humanized configuration, both manual operation, can also achieve one-button intelligent operation;

(8) This Furnace can meet multi-purposes, can be used as a simple vacuum or atmosphere sintering furnace;

(9) diversified types, vertical upper discharge, vertical side door discharge, one-way pressure, two-way pressure and so on, arbitrary choice;

(10) This product accepts non-standard customization.

Model	Work Area Dimension D*H mm	Maximum Temperature℃	Cold limit Vacuum Pa	The pressure ratio Pa/h	Rated Power Kw	Pressure T	Displacement mm	Charge Pressure Mpa
GJC-RYL-50	Ф150*200	2400	5*10-3	3	50	20-200	0-100	0.05
GJC-RYL-75	Ф200*300	2400	5*10-3	5	75	20-200	0-150	0.05
GJC-RYL-100	Ф300*400	2400	5*10-3	6	100	20-200	0-250	0.05
GJC-RYL-200	Ф400*500	2400	5*10-3	6	200	20-200	0-300	0.05
GJC-RYL-300	Ф500*600	2400	5*10-3	6.5	300	20-200	0-350	0.05
GJC-RYL-400	Ф600*700	2400	5*10-3	6.5	400	20-200	0-450	0.05

Product parameter:

Title goes here.

1) Double SUS304 furnace structure, cooling water through the middle, effectively reduce the surface temperature of the furnace body to reduce high temperature damage, reduce the impact on the environment;

2) frame type double column support structure, using profile welding, overall processing, to ensure the reliability of equipment;

Title goes here.

3) the use of thermal insulation materials and thermal insulation structure, low thermal conductivity, good thermal insulation effect, even at a high temperature can effectively isolate heat, save energy consumption;

4) Wide temperature range, heating elements of various options, such as graphite, molybdenum, tungsten, tantalum, in the appropriate protective atmosphere, the temperature can reach 2800℃, can adapt to the hot pressing sintering of different materials;

Title goes here.

5) Diversified vacuum system configuration, choose different levels of vacuum according to the process;

6) Without charging and releasing system, you can choose hot pressing sintering in vacuum environment, also can choose hot pressing sintering in inert atmosphere or reducing atmosphere;

7) diversified types, vertical upper discharge, vertical side door discharge, one-way pressure, two-way pressure and so on, arbitrary choice;
