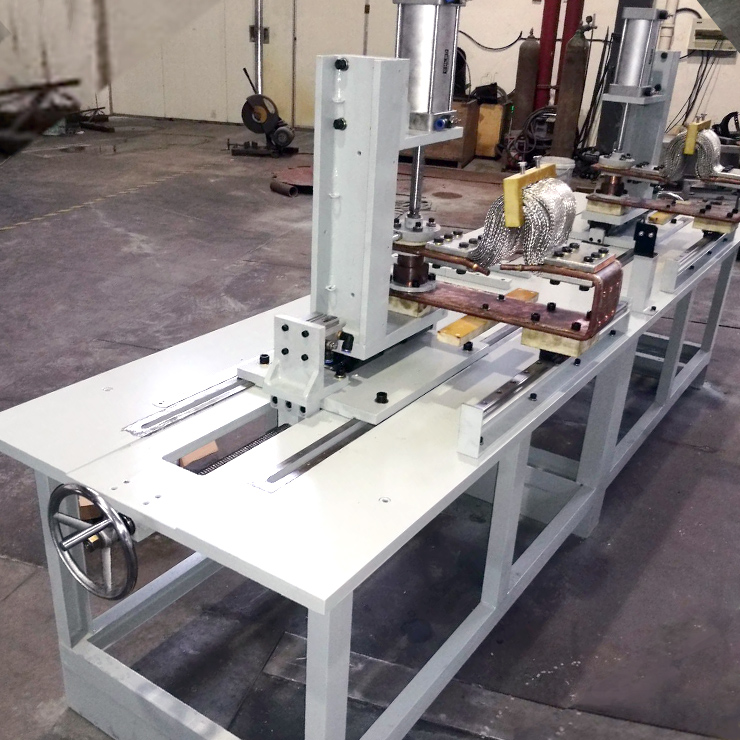

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Ask Lasest Price
    Price : USD1,000-80,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    Supply Ability : 100pcs/month
    • Product Details
    • Company Profile

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    1000C intermediate frequency stabilizer bar induction heating equipment with cold forming process for heating
    Products Description

    IGBT automotive stabilizer bar heating equipment Usage:
    Used for heating different shapes and models of solid or hollow car stabilizer bar, also can be used for other solid or hollow

    metal bar heating.


    Features:

    All kinds of three-dimensional stabilizer bar can be heated.
    PLC program control, operation.
    Infrared temperature measurement, automatic temperature control. There will be no over-burning and low temperature phenomenon, product quality is stable.
    Equipped with chuck automatic sliding mechanism, the stabilizer bar will not be deformed during heating.
    Model
    GJC-TR-100
    GJC-TR-200
    GJC-TR-300
    GJC-TR-400
    GJC-TR-500
    GJC-TR-600
    Power(KW)
    100
    200
    300
    400
    500
    600
    Voltage(V)
    18
    20
    22
    22
    25
    25
    Machine Dimension
    3000*800*1600
    3000*800*1600
    3200*1000*1800
    3200*1200*1800
    3500*1200*2000
    350*1200*200
    Control Method
    PLC automatic control and manual control
    Length of stabilizer bar
    900mm-1800mm
    Shape of stabilizer bar
    Various shapes
    Heating temperature
    800-1000℃,According to the user’s own Settings
    Temperature measurement way
    Infrared probe to measure temperature

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Advantage:

    Stabilizer bar is an important part of automobile. Its shape is complex, and most of it is three-dimensional.
    The stabilizer bar is mainly divided into two kinds, one is solid bar, the other is hollow bar.
    Manufacturing process has two kinds of hot forming and cold forming, the equipment is mainly used for cold forming process for heating
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Advantage:

    (heating equipment in the hot forming process adopts my company's intermediate frequency induction heating equipment), for cold forming, because the rod has been formed before heating, and the shape of the stabilizer bar is more three-dimensional, very complex,
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Advantage:

    The method of straight rod heating cannot be used to heat the medium frequency furnace. The device clamps both ends of the formed stabilizer bar with electrodes and realizes heating by the resistance of the stabilizer bar itself. Fast heating speed, not affected by the shape of the stabilizer bar, one machine can heat a variety of shapes of the stabilizer bar.
    Company Profile
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process
    Our company philosoph:
    We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
    The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for high temperature graphitization furnace:

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for high temperature vacuum hot pressure furnace:

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for high temperature continuous furifing graphitization furnace:

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for carbonization sintering furnace:

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for bottom discharge graphitization furnace:

    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Patent for carbon fiber continuous furnace

    Production process
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process

    Customer Photos
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process
    Customer cooperation cases:
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process
    Our logistics system is all around the world.
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process
    1000C Intermediate Frequency Stabilizer Bar Induction Heating Equipment With Cold Forming Process
    FAQ

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
