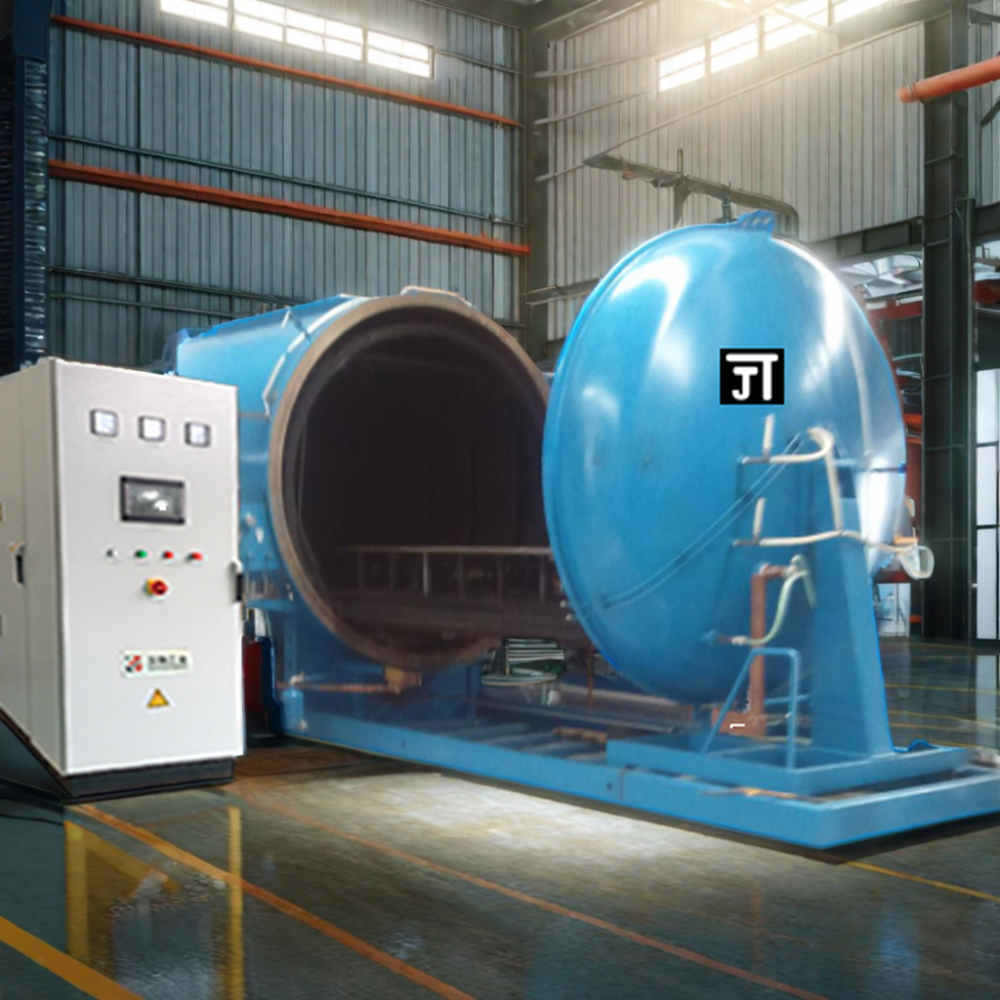

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Ask Lasest Price
    Price : USD10,000-80,000/SET
    Brand Name : Jingtan
    Certification : CE
    Delivery Time : 60 days
    Payment Terms : L/C/T/T
    Supply Ability : 10pcs/month
    • Product Details
    • Company Profile

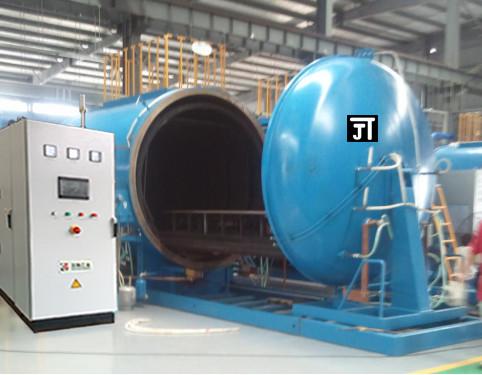

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Specification

    Vacuum deposition furnace:

    Mainly used for the preparation of carbon-carbon composite materials, and the deposition furnace is mainly used for the preparation of pyrolytic carbon coating on the surface of graphite, semiconductor devices and heat-resistant scour materials.

    Parameter /Model No.
    GJC-0305-C
    GJC-0505-C
    GJC-0608-C
    GJC-0608-C
    GJC-0812-C
    GJC-1120-C
    GJC-1218-C
    GJC-1520-C
    Working Zone Size
    φ×H(mm)
    300×500
    500×500
    600×800
    600×1200
    800×1200
    1100×2000
    1200×1800
    1500×2000
    Highest Temperature
    (℃)
    2300
    2300
    2300
    2300
    2300
    2300
    2300
    2300
    Temperature uniformity(℃)
    ±5
    ±5
    ±5/±7.5
    ±7.5/±10
    ±7.5/±10
    ±10/±15
    ±10/±15
    ±15/±20
    Limit Vacuum Degree(Pa)
    1-100
    1-100
    1-100
    1-100
    1-100
    1-100
    1-100
    1-100
    Limit Vacuum Degree(Pa)
    0.67
    0.67
    0.67
    0.67
    0.67
    0.67
    0.67
    0.67
    Heating method
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Resistance/induction
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    Design temperature
    1250℃/1650℃/1800℃/2200℃
    Common temperature
    900~1200℃
    Vacuum degree
    < 50Pa
    Pressure rise rate
    6.67pA /h(or 150Pa/24h) in cold state of empty furnace
    Heating mode
    graphite resistance heating or induction heating, independent temperature control, good temperature uniformity
    Atmosphere medium
    vacuum /CH4/C3H6/H2/N2/Ar
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    Gas control mode
    mass flow meter control, multi-channel gas path, uniform flow field, no deposition dead Angle, good deposition effect;Multi-stage and efficient exhaust treatment system, environmentally friendly, easy to clean up
    Furnace type
    square, round, vertical or horizontal structure (non-standard design), fully enclosed deposition chamber, good sealing effect,
    strong anti-pollution ability;
    Furnace cooling mode
    furnace shell water cooling, external circulation quick cooling system can be selected, short cooling time, high production
    efficiency;
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    Structure form
    horizontal - side discharge, vertical - up/down discharge
    Locking mode
    manual/automatic
    Shell material
    inner stainless steel/all stainless steel
    Insulation material
    carbon felt/graphite felt/carbon fiber cured felt
    Infrared instrument
    single colorimetric/double colorimetric
    Power supply
    KGPS/IGBT(only suitable for medium frequency heating)
    Product parameter:
    Company Profile
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    Our company philosoph:
    We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
    The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for high temperature graphitization furnace:

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for high temperature vacuum hot pressure furnace:

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for high temperature continuous furifing graphitization furnace:

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for carbonization sintering furnace:

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for bottom discharge graphitization furnace:

    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Patent for carbon fiber continuous furnace

    Production process
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature

    Customer Photos
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    Customer cooperation cases:
    Industrial Vacuum Vapor Deposition Furnace 900~1200 Degree High Temperature
    FAQ

    Are you a factory or trading company?

    Q: Are you a factory or trading company?
    A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

    Do you have customization or OEM service?

    Q: Do you have customization or OEM service??
    A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

    What's your advantages?

    Q:What's your advantages?
    A:Quick response to your enquiry
    High quality control
    Stable supply chain in the domestic maket
    Timely delivery
    Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
