Intelligent PLC Security Monitoring Vacuum Graphite Heating High Temperature Graphitization Furnace/Oven

Specification

Vacuum graphitization furnace

Application: high temperature treatment and graphitization of carbon structural parts (products), C/C composite products,
graphene, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and smelted in carbon environment.

Characteristics of vacuum graphitization furnace:

Ultra-high temperature furnace body up to 2600℃ can fully meet the sintering and graphitization of various materials.
Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

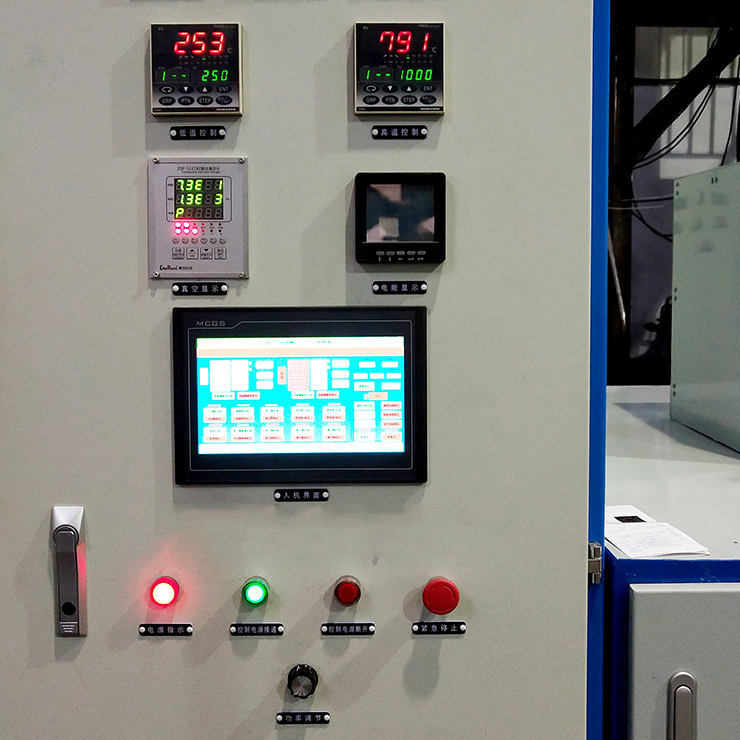

Adopt internal circulation pure water cooling system, digital flow monitoring system. Intelligent PLC security monitoring, remote control can be realized, with no paper to record the parameters, automatic storage,water, electricity, gas automatic control and protection system, with internal network port connection.

Furnace body is equipped with mechanical explosion-proof valve, with automatic pressure relief function, to ensure safety.

Maximum Use Temperature	Normal Temperature -2600℃
Normal Temperature -2600℃	1L,10L,35L,100L	200L,340L,540L,800L,1570L
Working atmosphere in furnace	Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Measurement	≤+10℃	≤+15℃
Temperature Uniformity	Infrared optical temperature measurement,temperature measurement range 900~3500℃ or 1000~3200℃
Temperature Measurement accuracy	0.2~0.75%
Temperature Control	Program control and manual control
Temperature Control accuracy	Program control and manual control
Limit heating rate	60℃/min	25℃/min

Advantage 1:

Absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace designtechnology.

Advantage 2:

Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.

Company Profile

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for high temperature graphitization furnace:

Patent for high temperature vacuum hot pressure furnace:

Patent for high temperature continuous furifing graphitization furnace:

Patent for carbonization sintering furnace:

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Production process

Customer Photos

Our logistics system is all around the world.

Customer cooperation cases:

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.

    Hunan Jingtan Automation Equipment Co., Ltd. was founded in 2021, the production base Zhuzhou Guangjichang Technology Co., Ltd. was founded in 2014, is a high-tech enterprise integrating research and development, production, sales and service, and has become a famous leading manufacturer of thermal equipment in China.Now it has two factories,which covers 3500m2. The main products are vacuum sintering furnace, silicon carbide sintering furnace, high temperature graphitization furnace, vapor deposition furnace, high temperature carbon tube furnace, vacuum carbonization furnace, vacuum hot press furnace, vacuum induction melting furnace, etc. The equipment produced by our company is widely used in aerospace, electronics, transportation, machinery, metallurgy, cemented carbide, refractory metal, special ceramics, carbon carbon composite materials, semiconductor materials and solar cells and other dozens of processing and manufacturing industries and fields, and has won the trust and praise of the majority of users with high-quality products and perfect service.

     We have always adhered to the science and technology enterprise, continuous innovation, pay attention to cooperation with scientific research institutions and major universities, and develop a number of high-tech thermal equipment with the industry's leading level. Our company can design and manufacture non-standard thermal equipment according to user requirements, and provide customers with corresponding process technical support, so as to relieve all worries for users.

   The company has a number of utility model patent certification, and has ISO9001:2015 quality management certificate, can provide CE, UL and other product certificates for the equipment. In order to continuously meet customer needs, to provide "directional application, focus on development, Customized per customer’s requirements" efficient characteristic services. Our company has a number of domestic first cases, such as: chlorine gas sintering furnace (can make the product purity of 99.9999%), ultra-high temperature graphitization furnace temperature up to 3200 degrees, vacuum hot press furnace weight up to 800 tons.

    "Customer first, the pursuit of quality, continuous innovation, continue to lead!" It is the service purpose of Jingtan company;" Based in Zhuzhou, radiating China, facing the world "is our company's service concept. At present, our products are mainly exported to Europe, Middle East, Southeast Asia and other countries; in the domestic market has also won the praise of the majority of users, has been highly recognized by the industry. Hunan Jingtan Automation Equipment Co., Ltd. strives to become your most trusted manufacturer of high temperature equipment.
